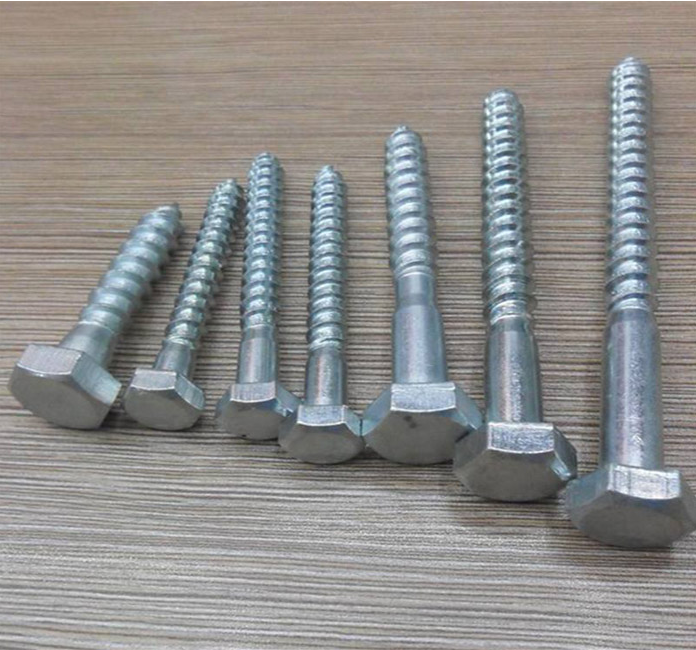

螺絲規格表 - 衡量螺絲是否標準的數據表
螺絲規格表是衡量螺絲是否標準的數據表。在設計過程當中，生產制造當中，銷售過程當中，服務客戶過程當中能得到廣泛的應用。
常見螺絲
<一>頭部剖溝,螺絲刀咀型:
a.?Slotted:?一字
b.?Phillips:?十字
c.?Phil-Slot:?一字/十字
d.?Hex?Socket:?內六角
e.?One?Way:?單向 - 只可鎖入,不可退出
<二>螺絲頭頭型:
a.?Flat:?平頭 - 鎖入后,頂部與工作件齊平
b.?Oval:?色拉頭
c.?Round:?圓頭
d.?Pan:?圓扁頭/盤頭
e.?Truss:?大圓扁頭
f.?Hex?:?六角頭
<三>?外觀表面處理:
a.?Z:?Zine-Plated:?鍍鋅
b.?Ni:?Ni-Plated:?鍍鎳
c.?Tin-Plated:?鍍錫
d.?Zine?Plated?/?Green?Iridite:?鍍鋅綠膜處理.
e.?Radiant?Plated:?鍍五彩
f.?Passivate:?抗氧化處理
g.?Alodial?Finish:?無外觀處理
<四>螺紋規格:
a.?公制螺絲
Ex:?M6?x?8?–?PPB
M6x1機械牙螺絲,?8mm長,?十字溝槽,?圓扁頭,?鍍黑.
b.?美制螺絲
美規螺絲一般以番號標示,
如#2-56,?#4-40,?#6-32,?#8-32,?#10-24…etc.
Ex:?#2-56? - 0.086-56:?2?番56?牙
Ex:?#4-40? - 0.112-40?:?4?番40?牙
Ex:?#6-32? - 0.138-32?:?6?番32?牙
Ex:?#8-32? - 0.164-32?:?8?番32?牙
Ex:?#10-24? - 0.190-24:?10?番24?牙
牙數為每英寸牙的數量,長度須經過換算才是公制mm?尺寸,1" - 英寸=25.4mm - 毫米.
c.?英制螺絲:
標示皆將分母為8,?再直接稱分子之番號.
Ex:?1/8?x?0.50?–?PPB?:?1?分牙螺絲釘x?0.50”?長,?PPB
Ex:?5/16?x?0.50-?PPB?=?2.5/8?x?0.50?–?PPB?:?2?分半牙螺絲釘x?0.50”?長,?PPB
Ex:?5/32?x?0.50-?PPB?=1.25/8?x?0.50?–?PPB?:?1?分2?厘半螺絲釘x?0.50”?長,?PPB
Ex:?1/4?x?0.50-?PPB=?2/8?x?0.50?–?PPB?:?2分牙螺絲釘x?0.50”?長,?PPB
注:?有時會標示粗牙或細牙
UNF:?細牙:電子業較常用
UNC:粗牙:?重機械結構較常用
Ex:?3/8?x?0.50?UNF?-PPB?:?3分細牙螺絲釘x?0.50”?長,?PPB.
或以英制外徑表示,
如0.086-56,?0.112-40?,?0.138-32?,?0.164-32?,?0.190-24…etc.
Ex:?632?–?8?–?PPB.
英制螺絲外徑和長度長度須經換算才是公制mm?尺寸,1" - 英寸=25.4mm - 毫米.
規格表
螺絲規格表僅供參考。
|
螺絲規格表螺絲螺紋牙距表螺釘規格表 |
|||||||||||
|
類別 |
規格 |
牙距mm |
成品外徑 |
線徑 |
類別 |
規格 |
牙距 |
成品外徑 |
線徑 |
||
|
最大 |
最小 |
±0.02mm |
每英寸 |
最大 |
最小 |
±0.02mm |
|||||
|
國標粗牙60° |
M1.4 |
0.30 |
1.38 |
1.34 |
1.16 |
英制粗牙55° |
1/8 |
40 |
3.145 |
3.030 |
2.70 |
|
M1.7 |
0.35 |
1.68 |
1.61 |
1.42 |
5/32 |
32 |
3.945 |
3.795 |
3.38 |
||
|
M2.0 |
0.40 |
1.98 |
1.89 |
1.68 |
3/16 |
24 |
4.732 |
4.592 |
4.00 |
||
|
M2.3 |
0.40 |
2.28 |
2.19 |
1.98 |
1/4 |
20 |
6.320 |
6.165 |
5.45 |
||
|
M2.5 |
0.45 |
2.48 |
2.38 |
2.15 |
5/16 |
18 |
7.905 |
7.737 |
6.94 |
||
|
M3.0 |
0.50 |
2.98 |
2.88 |
2.60 |
3/8 |
16 |
9.490 |
9.312 |
8.40 |
||
|
M3.5 |
0.60 |
3.47 |
3.36 |
3.02 |
7/16 |
14 |
11.07 |
10.88 |
9.84 |
||
|
M4.0 |
0.70 |
3.98 |
3.83 |
3.40 |
1/2 |
12 |
12.66 |
12.46 |
11.22 |
||
|
M4.5 |
0.75 |
4.47 |
4.36 |
3.88 |
9/16 |
12 |
14.25 |
14.04 |
12.81 |
||
|
M5.0 |
0.80 |
4.98 |
4.83 |
4.30 |
5/8 |
11 |
15.83 |
15.61 |
14.27 |
||
|
M6.0 |
1.00 |
5.97 |
5.82 |
5.18 |
美制粗牙60° |
4# |
40 |
2.824 |
2.695 |
2.37 |
|
|
M7.0 |
1.00 |
6.97 |
6.82 |
6.18 |
5# |
40 |
3.154 |
3.026 |
2.69 |
||
|
M8.0 |
1.25 |
7.96 |
7.79 |
7.02 |
6# |
32 |
3.484 |
3.333 |
2.91 |
||
|
M9.0 |
1.25 |
8.96 |
8.79 |
8.01 |
8# |
32 |
4.142 |
3.991 |
3.57 |
||
|
M10 |
1.50 |
9.96 |
9.77 |
8.84 |
10# |
24 |
4.8 |
4.618 |
4.05 |
||
|
M11 |
1.50 |
10.97 |
10.73 |
9.84 |
12# |
24 |
5.461 |
5.279 |
4.70 |
||
|
M12 |
1.75 |
11.95 |
11.76 |
10.7 |
1/4 |
20 |
6.322 |
6.117 |
5.45 |
||
|
M14 |
2.00 |
13.95 |
13.74 |
12.5 |
5/16 |
18 |
7.907 |
7.687 |
6.93 |
||
|
M16 |
2.00 |
15.95 |
15.74 |
14.5 |
3/8 |
16 |
9.491 |
9.254 |
8.40 |
||
|
M18 |
2.50 |
17.95 |
17.71 |
16.2 |
7/16 |
14 |
11.08 |
10.82 |
9.83 |
||
|
M20 |
2.50 |
19.95 |
19.71 |
18.2 |
1/2 |
13 |
12.66 |
12.39 |
11.32 |
||
|
國標細牙60° |
M4.0 |
0.5 |
3.97 |
3.86 |
3.58 |
9/16 |
12 |
14.25 |
13.96 |
12.80 |
|
|
M4.5 |
0.5 |
4.47 |
4.36 |
4.07 |
11 |
15.83 |
15.53 |
14.20 |
|||
|
M5.0 |
0.5 |
4.97 |
4.86 |
4.57 |
美制細牙60° |
4# |
48 |
2.827 |
2.713 |
2.44 |
|
|
M6.0 |
0.75 |
5.97 |
5.85 |
5.41 |
5# |
44 |
3.157 |
3.036 |
2.73 |
||
|
M7.0 |
0.75 |
6.97 |
6.85 |
6.41 |
6# |
40 |
3.484 |
3.356 |
3.02 |
||
|
M8.0 |
1.00 |
7.97 |
7.83 |
7.24 |
8# |
36 |
4.145 |
4.006 |
3.63 |
||
|
M9.0 |
1.00 |
8.97 |
8.83 |
8.24 |
10# |
32 |
4.803 |
4.651 |
4.23 |
||
|
M10 |
1.00 |
9.97 |
9.82 |
9.23 |
12# |
28 |
5.461 |
5.296 |
4.81 |
||
|
M10 |
1.25 |
9.96 |
9.81 |
9.07 |
1/4 |
28 |
6.324 |
6.16 |
5.68 |
||
|
M12 |
1.25 |
11.97 |
11.76 |
11.07 |
5/16 |
24 |
7.909 |
7.727 |
7.16 |
||
|
M12 |
1.50 |
11.96 |
11.79 |
10.89 |
3/8 |
24 |
9.497 |
9.315 |
8.74 |
||
|
M14 |
1.50 |
13.96 |
13.79 |
12.89 |
7/16 |
20 |
11.08 |
10.87 |
10.18 |
||
|
M16 |
1.50 |
15.96 |
15.79 |
14.89 |
1/2 |
20 |
12.67 |
12.46 |
11.76 |
||
|
M18 |
1.50 |
17.95 |
17.78 |
16.86 |
9/16 |
18 |
14.25 |
14.03 |
13.25 |
||
|
M20 |
1.50 |
19.95 |
19.65 |
18.85 |
5/8 |
18 |
15.84 |
15.62 |
14.83 |
||
